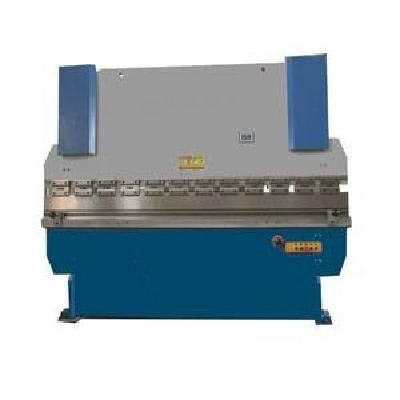

Bending machine, CNC bending machine

Bending machine, CNC bending machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: LIANYUNGANG
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-07-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  ANHUI
  • Brand Name:  longmao
  • Model Number:  004

Hydraulic press bending machine can be divided into: torsion shaft synchronization, machine hydraulic synchronization, and electro hydraulic synchronization. According to the mode of motion can be divided into: moving type, moving type.

The bending machine comprises a bracket, table and the clamping plate, the worktable is arranged on the supporting table, which comprises a base and a pressing plate, a hinge is connected with the clamping plate through the base by a shell, a coil and a cover plate, the coil is arranged in a hollow seat shell, hollow top cover.

When the wire is used, the coil is electrified by the conducting wire, and the pressure plate is generated by the electric power, so that the clamping between the clamp plate and the base plate is realized. Due to the adoption of the electromagnetic force clamping, the pressure plate can be made into a plurality of work pieces, and the workpiece can be processed on the side wall. Bending machine can replace the bending machine die, so as to meet the needs of various workpiece!

Main categories of folding edit

Bending machine is divided into manual bending machine, hydraulic bending machine and CNC bending machine. Manual bending machine is divided into mechanical manual bending machine and electric hand brake, hydraulic bending machine can be divided into: torsion shaft synchronization, synchronous machine fluid, and electro hydraulic synchronization. Hydraulic bending machine according to the motion mode can be divided into: the upper and lower dynamic type.

Folding edit this paragraph structure description

1, the slider part: the use of hydraulic transmission, the slider part of the slider, the cylinder and the mechanical block to fine tune the structure of the structure.

The left and right oil cylinders are fixed on the machine frame, and the piston (rod) is driven to move up and down through the hydraulic pressure, and the mechanical block is controlled by the numerical control system;

2, work table part: button box manipulation, the motor drives the gear rack to move back and forth, and by the CNC system control the moving distance, the minimum reading for 0.01 mm (both before and after the position limit switch);

3, synchronization system: This machine is composed of the torsion axis, the swing arm, the joint bearing and so on the mechanical synchronization mechanism, the structure is simple, the performance is stable and reliable, the synchronization precision is high. The mechanical block is controlled by the motor, and the numerical control system is controlled by the numerical control system;

4, block material mechanism: the block material using motor drive, through the chain operation to drive two wire rod synchronous movement, numerical control system control the size of the block.


  • Place of Origin:  ANHUI
  • Brand Name:  longmao
  • Model Number:  004
